Fiber Optic Communication @ Das Netz

Interactive exhibit at “Das Netz” in the “Deutsches Technikmuseum Berlin” – cooperation with Felix Scharstein

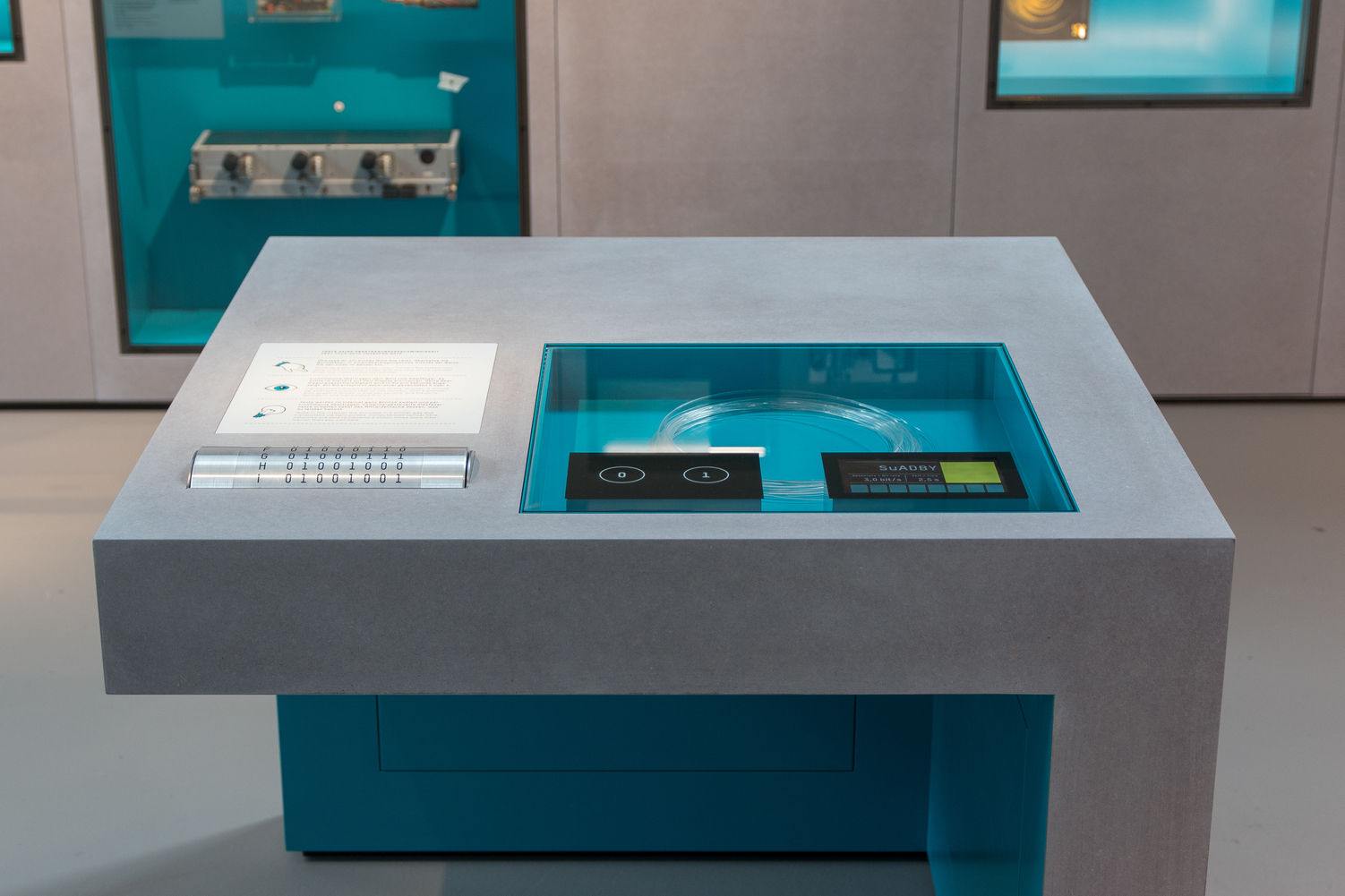

IMG_9186This device demonstrates data transmission over fiber optical cables. The sender unit emits light impulses when one of the buttons (0 or 1) is pressed. By sending eight bits a character is transmitted (ASCII code). A receiver unit shows the bits, the received characters and the data rate. The way of the light can be observed at the entrance and exit of the optical cable. The ASCII-code of all capital letters can be selected from a cylindrical table.

Sender PSoc 4 Microcontroller, capacitice Buttons,  high-power LED
Receiver PSoc 4 Microcontroller, phototransistor with trigger circuit, smart color display (eDIP TFT)
IMG_9202

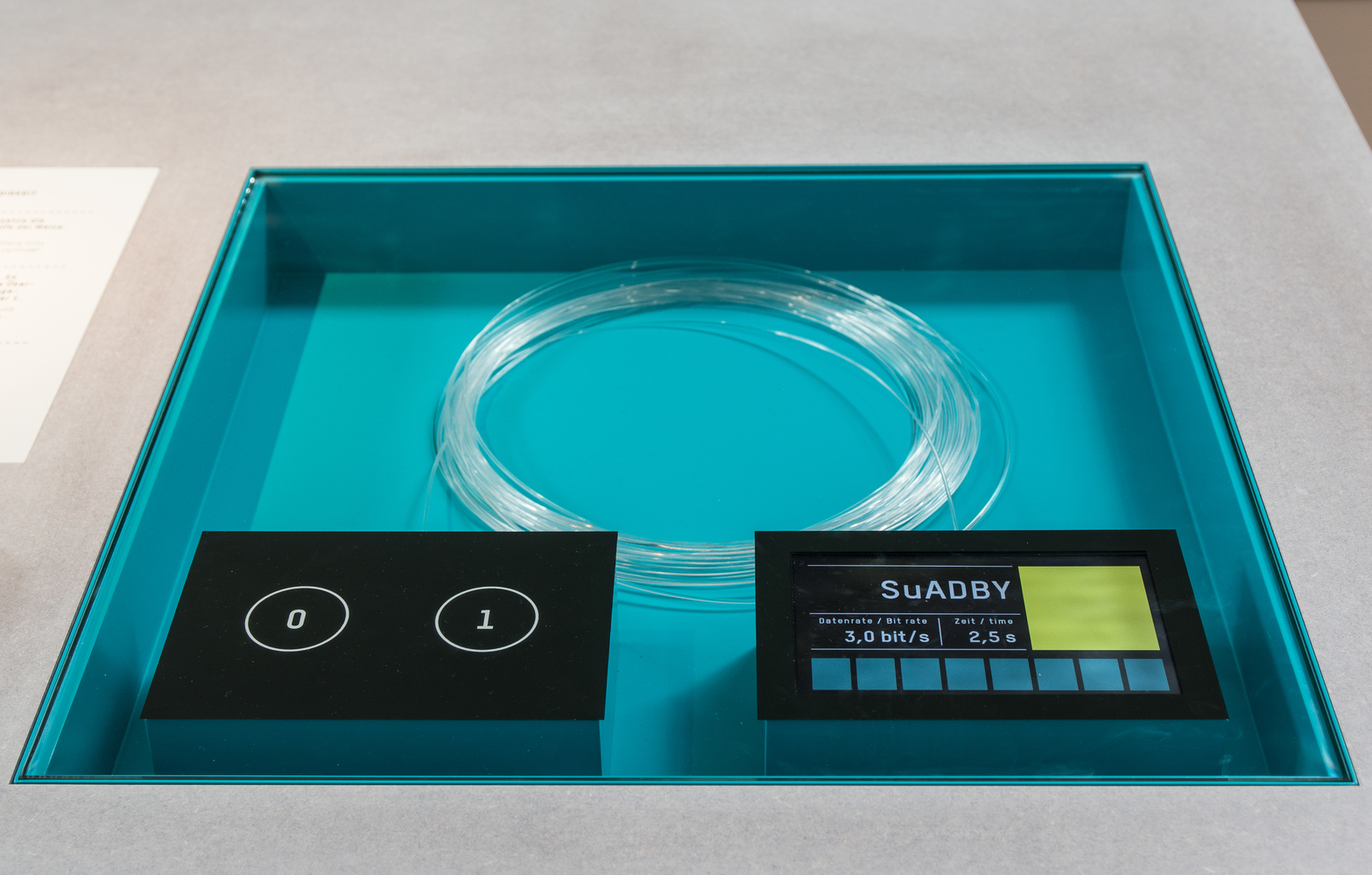

Sender, cable and receiver

(All images by Bruno Torres Suñén – click image for a larger version)

IMG_9203

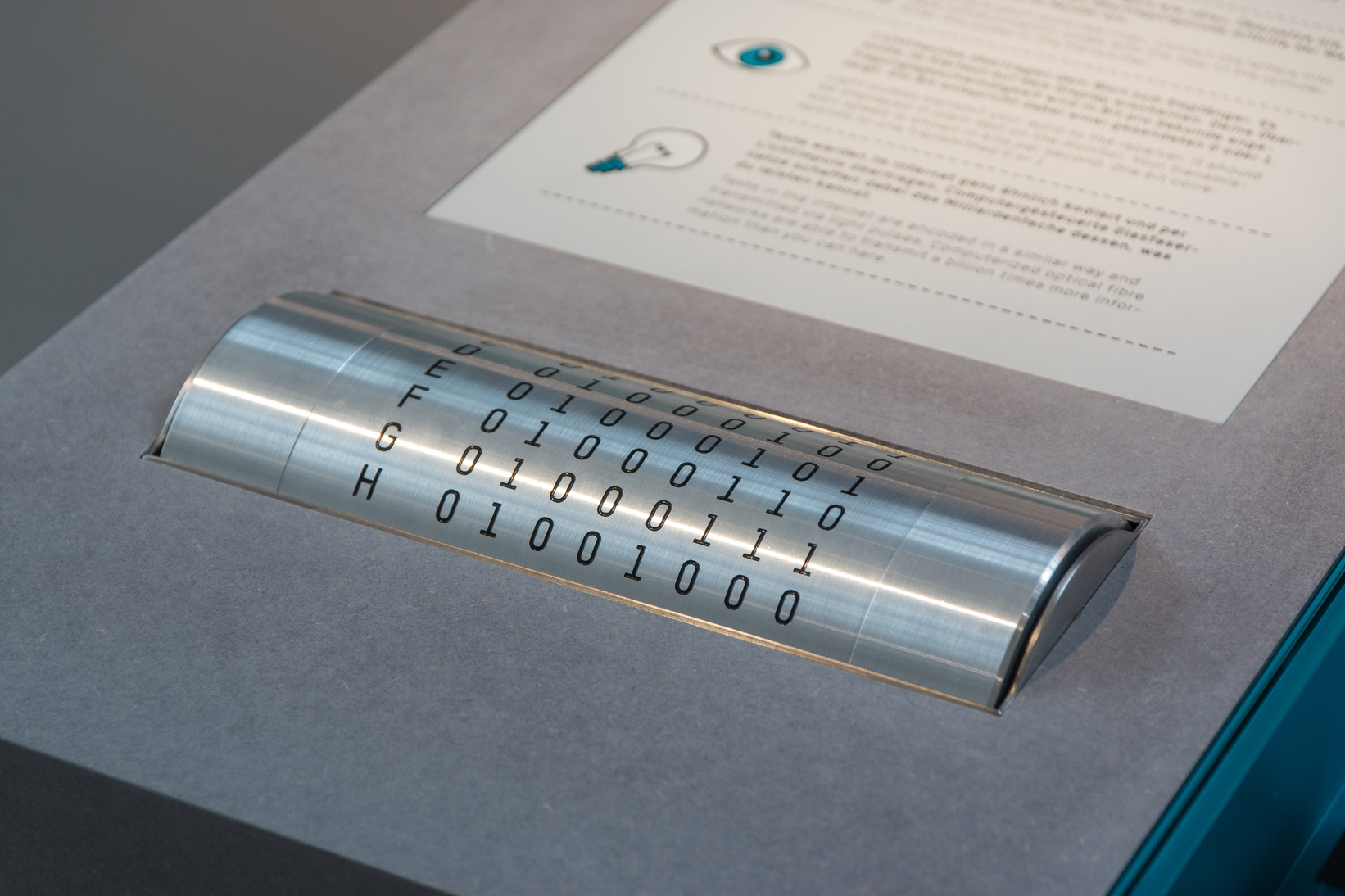

ASCII code table
